Basic Electricity and Electronics

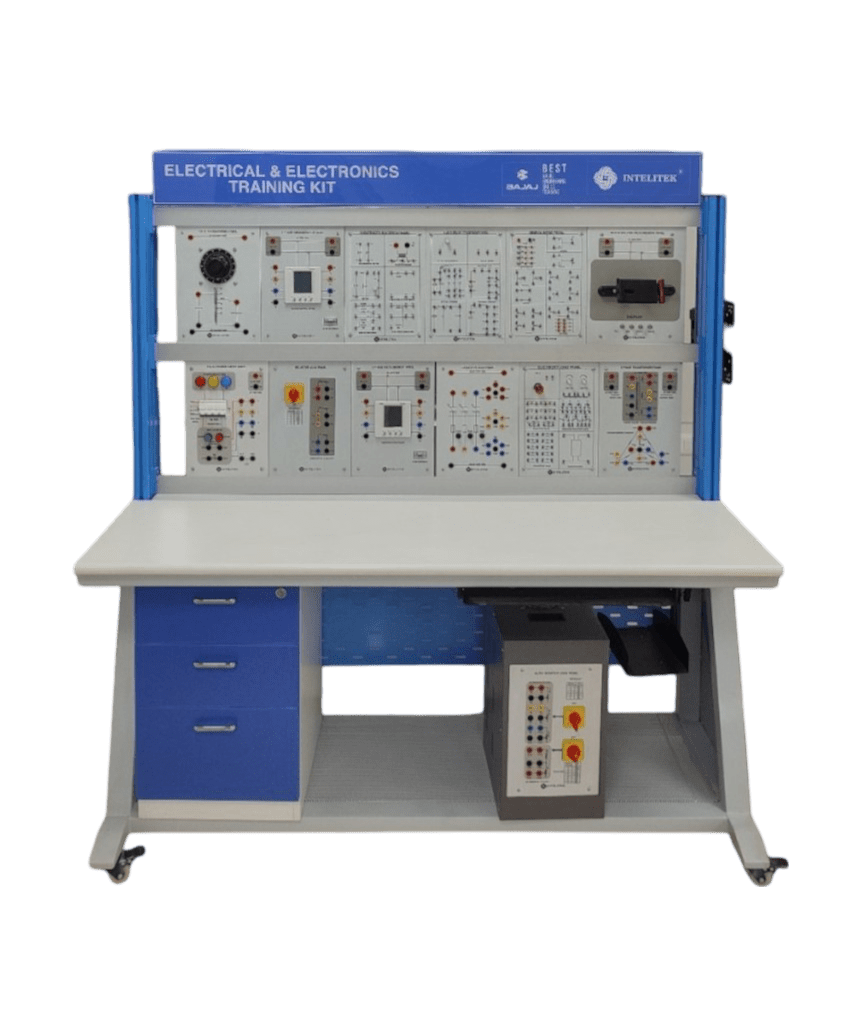

Basic Electricity and electronics modular setup build with 40X40mm Aluminum profile rack with sturdy table top flat panel and option to hang the PC Monitor in the Profile

The module consists of 8 ABS/MS panel mounted on the aluminum rack with mimic diagram, all input & output are terminated in 4mm shrouded banana connector. Basic Theorems, Laws and Understanding Unit.

Variable Programmable DC power supply with sweep facility up to 50V/5A with LCD display for Voltage, Current and Power indication, CC/CV Protection, and Various Fixed voltages to perform various experiments. made easy to set the desired voltage and other parameters using decoders.

PERIPHERAL MODULE:

AC Voltage Bank, Capacitor and Inductors Bank Module, Resistors Bank Module, Potential Meter Bank, Programmable Load Bank Module, Bridge Module,Transformer Bank Modules. Bar Magnet & Magnetic Compass. Digital Gates unit: – Input Switches, four Line Driver, AND Gate, Nand Gate, OR Gate, EX-OR Gate, Inverter.

LEARNING OBJECTIVES:

Basic laws of electrical engineering

How to use oscilloscope, multimeter and function generator.

DC, AC and three-phase current systems

Voltage-, temperature- and light-dependent resistances

Behavior of semiconductors: diodes, transistors, thyristors

Amplifiers

Operational amplifiers

Signal generators

Power supply circuits

MEASURING PANEL

Three phase Multifunction meter panel.

Bidirectional Multifunction

3 Phase ¾ wire, 415V, CT Input 5A

LCD/LED display, Aux supply 230V, 45-65 Hz, 5W

V, I., Hz, Pf, KVA, KW, KWH

SINGLE PHASE VARIAC PANEL

0-230V /3A Variac, Single Phase Transformer 200VA, 0-220V Primary input (1×2 socket), 0-220V Secondary output (2×2 socket).

LOAD BANK

Single Phase RLC Load

Programmable Inductive Load panel 0-0.75-3H

Inductive Load.

Programmable Capacitive Load panel.

MULTIFUNCTION MEASURMENT MODULE (OPTIONAL)

Features: The Multifunction meter, with a frequency range of 50 MHz and a resolution of 14 bits, is a very powerful and precise multifunction measurement device that can replace a stack of lab instruments. It is small and portable, and its Ethernet/Wi-Fi connectivity allows you to perform measurements remotely.

Digitally Stored Readings.

Programmable Signal Generation

Web and Mobile Based Visualization Options

Options to interface with NI-LABVIEW and MATLAB
