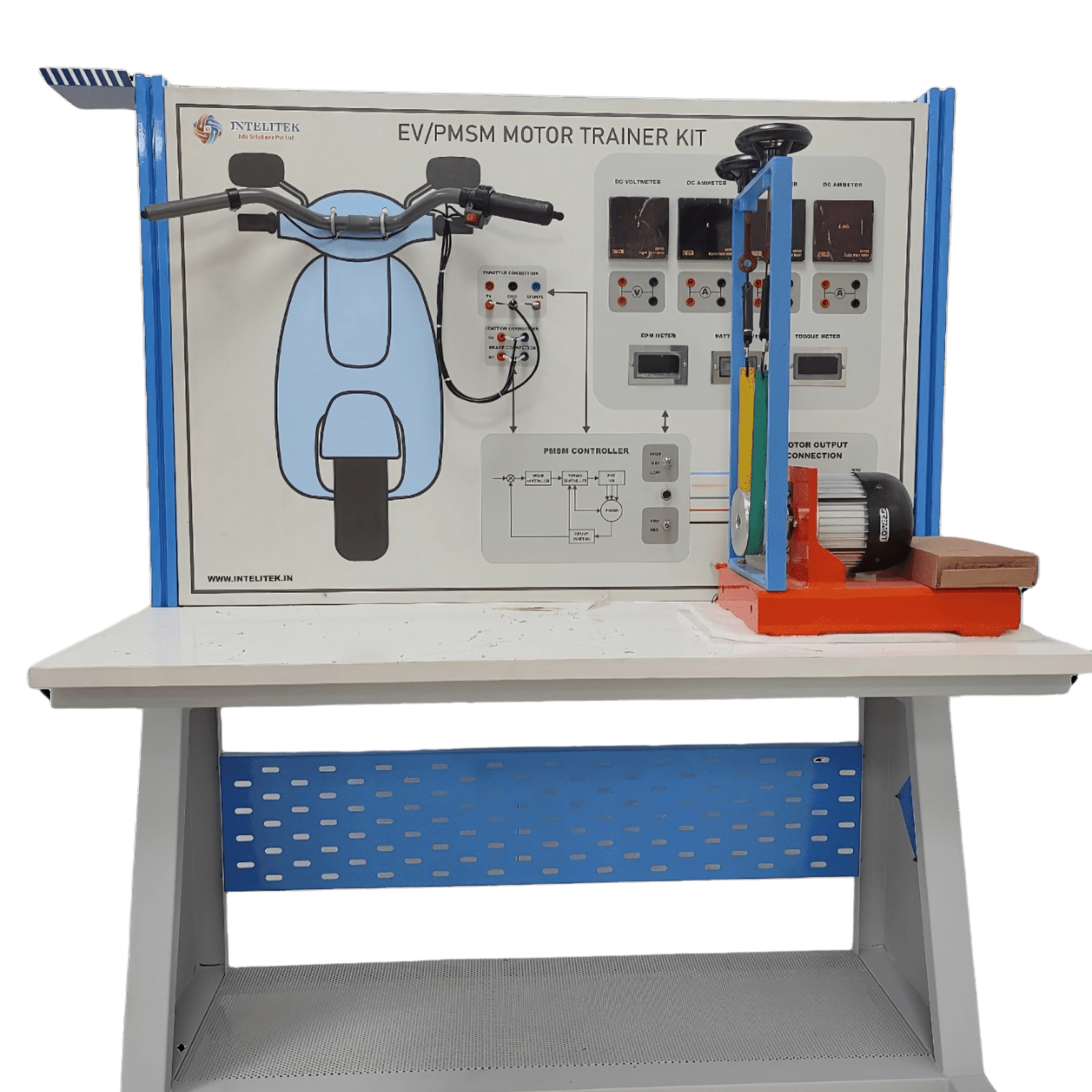

PMSM/BLDC MOTOR TRAINING KIT
INTELITEK PMSM Machine Lab is a significant and unique product for electrical and electric vehicle laboratories. PMDC/PMSM Machines are an important part of the Electrical Engineering Syllabus, especially in light of advanced technology. This product is necessary for providing students with a fundamental understanding of the operation of a PMDC machine. It provides comprehensive learning materials to improve students’ practical understanding and explains the key ideas of the PMDC/PMSM Machine.
INTELITEK 9500 provides experiments for understanding control circuits, operational and load characteristics of a PMDC machine. All connections and the appearance of the panel are intended so that students can make connections on their own. All protection circuits are built-in, thus there is nearly little chance of failure or danger to the user.
Specification:
Machine with mechanical loading arrangement.
Provided with Digital Tachometer.
Control board high grade FRP material to provide utmost safety to the users. Machine with Class “B” insulation.
Heavy duty base.
Brake drum/pulley with heat suppression facility.
Designed by considering all the safety standards.
Diagrammatic representation for the ease of connections.
Scope of Learning:
Study of control circuit by analyzing its output signal.
Operating characteristic of PMDC Motor.
Load characteristic of PMDC Motor.
Speed control of PMDC Motor using DC Drive.
Technical Specifications:
DC Machine
Type : PMDC
Rating : 1HP
Voltage rating : 180V ± 10%
Speed : 1500RPM±
Insulation : 10%Class ‘B’
Loading Arrangement Brake : Mechanical
Drum/Pulley : Aluminum Cast
Digital Meters used
DC Voltmeter
DC Ammeter
AC Voltmeter
AC Ammeter
Digital Tachometer
Bike Handle
Throttle –
Acceleration
ON/OFF control
Battery health monitoring
