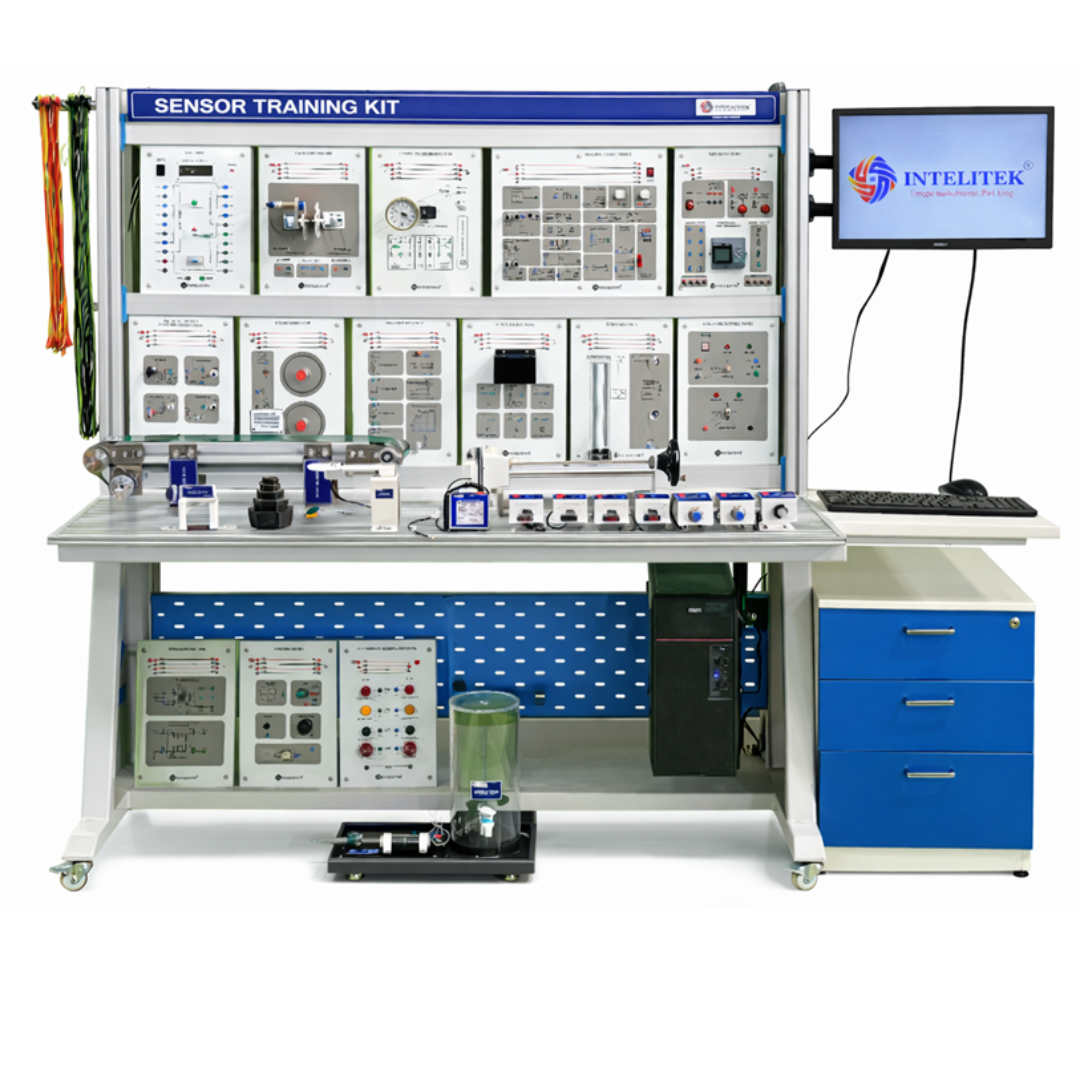

SENSORS DEMO BENCH-ANALOG – IES-EC-708

IES-EC-708

Technical Specifications

Proximity Sensor Set – Training setup including inductive, capacitive, photoelectric, and ultrasonic proximity sensors for studying different industrial sensing principles.

Inductive Proximity Sensor – Industrial 3-wire sensor with PNP/NPN selectable output, used for detecting metallic objects without physical contact.

RPM Sensor with Digital Indicator – Non-contact speed measurement sensor with digital display for monitoring rotational speed of moving parts.

Digital U-Tube Manometer – Precision digital manometer used for pressure measurement and calibration reference in laboratory experiments.

Capacitive Proximity Sensor – 3-wire capacitive sensor with adjustable sensitivity, capable of detecting both metallic and non-metallic materials.

Photoelectric Sensor – Industrial diffuse or retro-reflective photoelectric sensor with PNP/NPN output for object detection applications.

Flow Measurement Sensor – Industrial flow sensor with digital pulse output, suitable for process flow monitoring experiments.

Rotary Encoder – Incremental rotary encoder (minimum 1020 PPR) providing pulse output signals for position and speed measurement.

Level and Pressure Switching Devices – Float-type level switch and industrial pressure switch (0–10 bar range) for ON/OFF control applications.

Indicators and Accessories – Includes digital indicators (flow, pressure, temperature, level), signal conditioners, pulse counters, buzzers, switches, terminal blocks, wiring accessories, and mounting hardware for complete instrumentation training setup.

FEATURES

Supports ON/OFF, pulse, and frequency-based digital sensors

Modular design for easy sensor interchange ability

Industrial-grade sensing devices

Real-time diagnostics and fault simulation capability

Safe wiring terminals and structured cable management

Suitable for ITIs, engineering colleges, and industrial training centres

Enhances understanding of sensor-to-controller interfacing

Robust construction for long-term laboratory use

RANGE OF EXPERIMENTS

Study of digital sensor operating principles

ON/OFF control and switching behaviour analysis

Pulse and frequency signal measurement

Proximity sensor applications and characteristics

Speed and position measurement using encoders

Flow and level detection using digital sensors

Testing of pressure and level switches

Fault insertion, diagnosis, and troubleshooting

Interfacing digital sensors with indicators and counters

SERVICES REQUIRED

Electrical Supply: 1φ, 230 V AC, 50 Hz

Auxiliary Supply: 24 V DC (for sensor operation)

GENERAL

Application: Digital Sensors Training for Automation & Process Control

Mounting: Floor-mounted workstation

Safety: Proper isolation, earthing, and protective devices provided
